House plans / Barn 240
Barn 240 render
Barn

Barn 240

Barn-style house

Heated area240 m² (2583 sq ft)
Design set24 sheets · 15 renders
UnitsMetric; imperial on request
Plan codeG30
PDF design set$379
PDF + DWG/model files$579
Builder licencefrom $149 · details
Buy or ask about this planLicense for builders

Plans, sections and details

Tap a sheet to enlarge it.

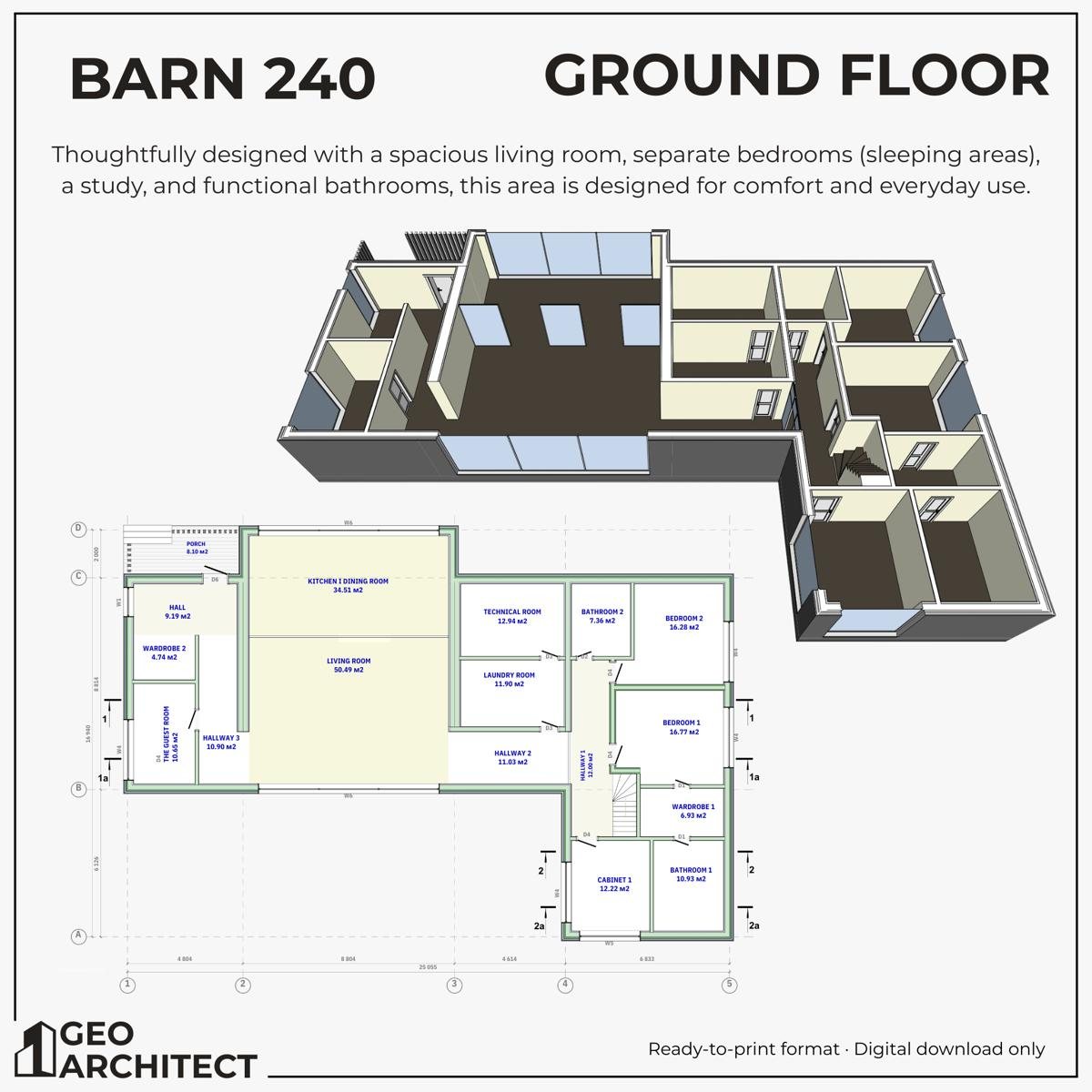

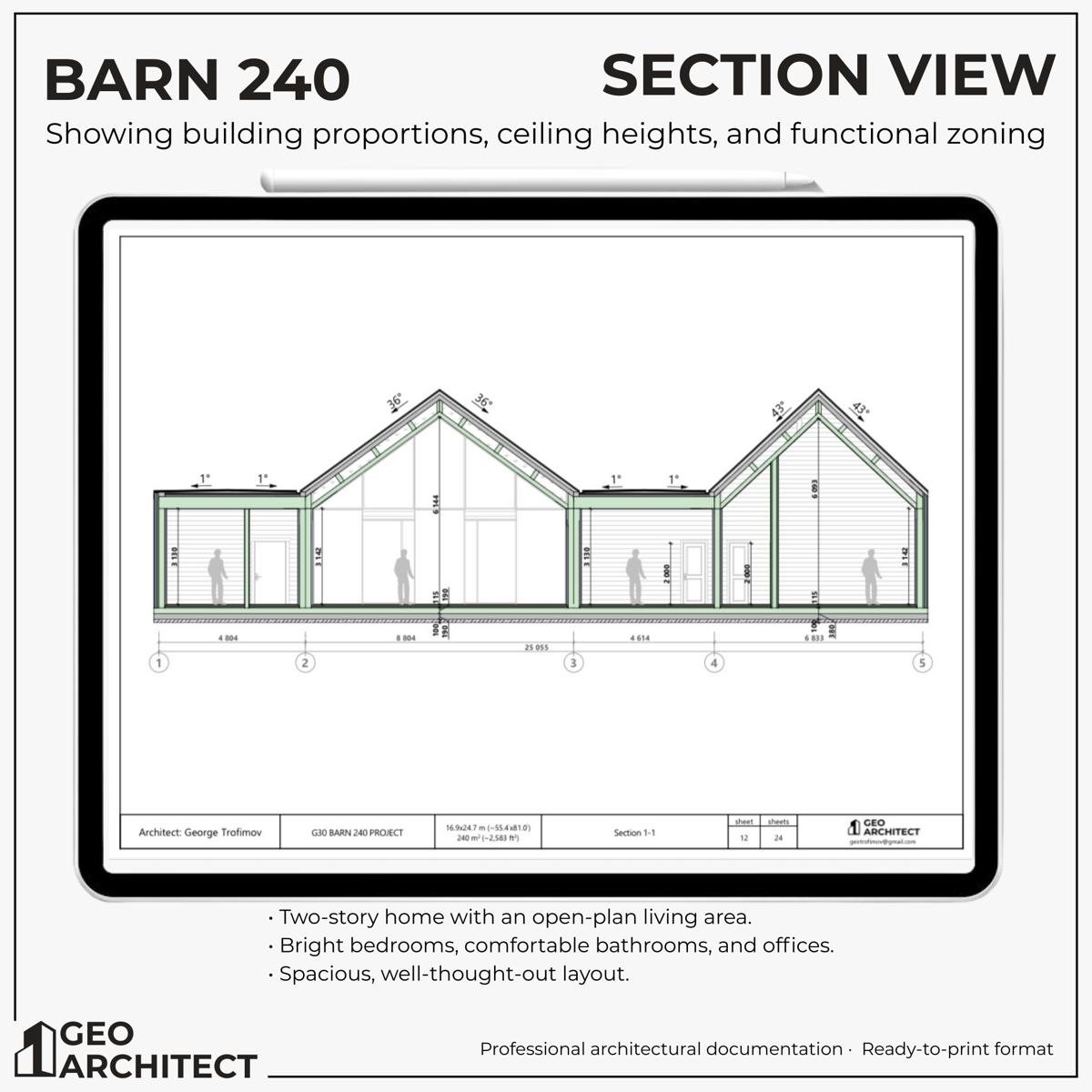

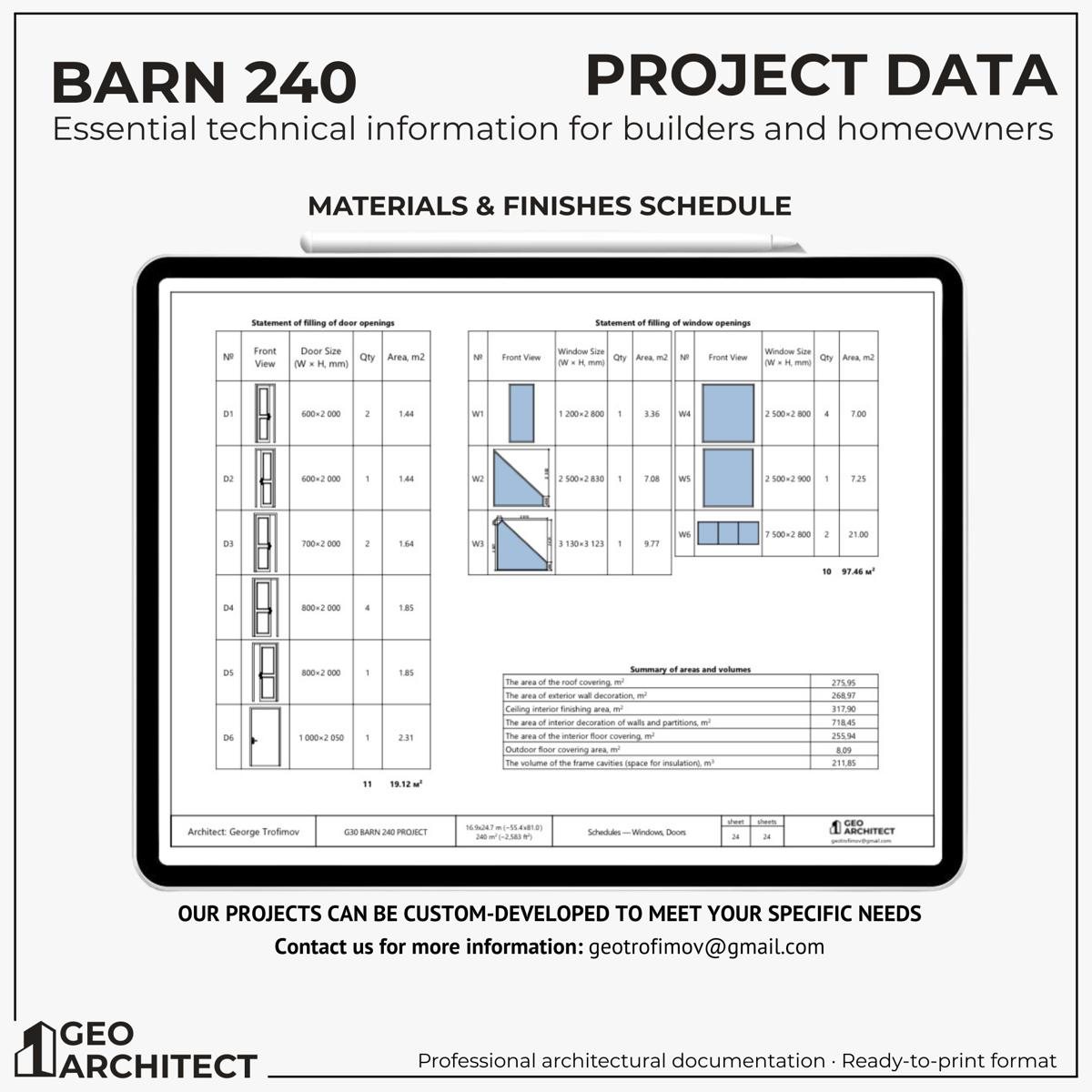

Barn 240 drawing sheet 1Barn 240 drawing sheet 2Barn 240 drawing sheet 3Barn 240 drawing sheet 4Barn 240 drawing sheet 5Barn 240 drawing sheet 6Barn 240 drawing sheet 7

More views

Barn 240 render 1Barn 240 render 2Barn 240 render 3

What you get

  • Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
  • Metric drawings; imperial (feet and inches) on request
  • Renders for presentation
  • DWG and model files with the builder licence

This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
