House plans / Barn 31
Barn
Barn 31
Barn-style house
| Heated area | 28.1 m² (302 sq ft) |
| Bedrooms | 1 |
| Design set | 21 sheets · 16 renders |
| Units | Metric + imperial (ft-in) |
| Plan code | G27 |
| PDF design set | $49 |
| PDF + DWG/model files | $69 |
| Builder licence | from $149 · details |

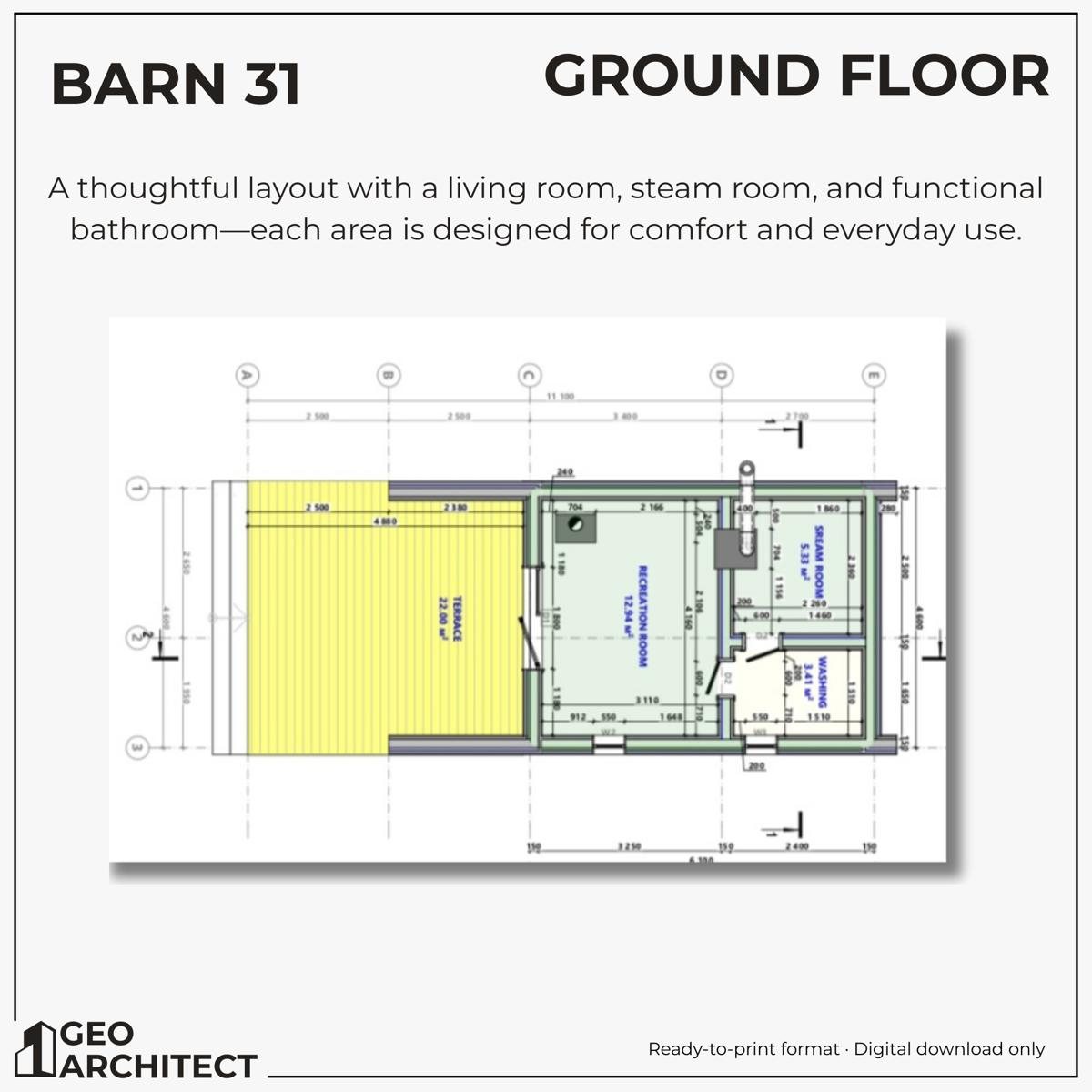

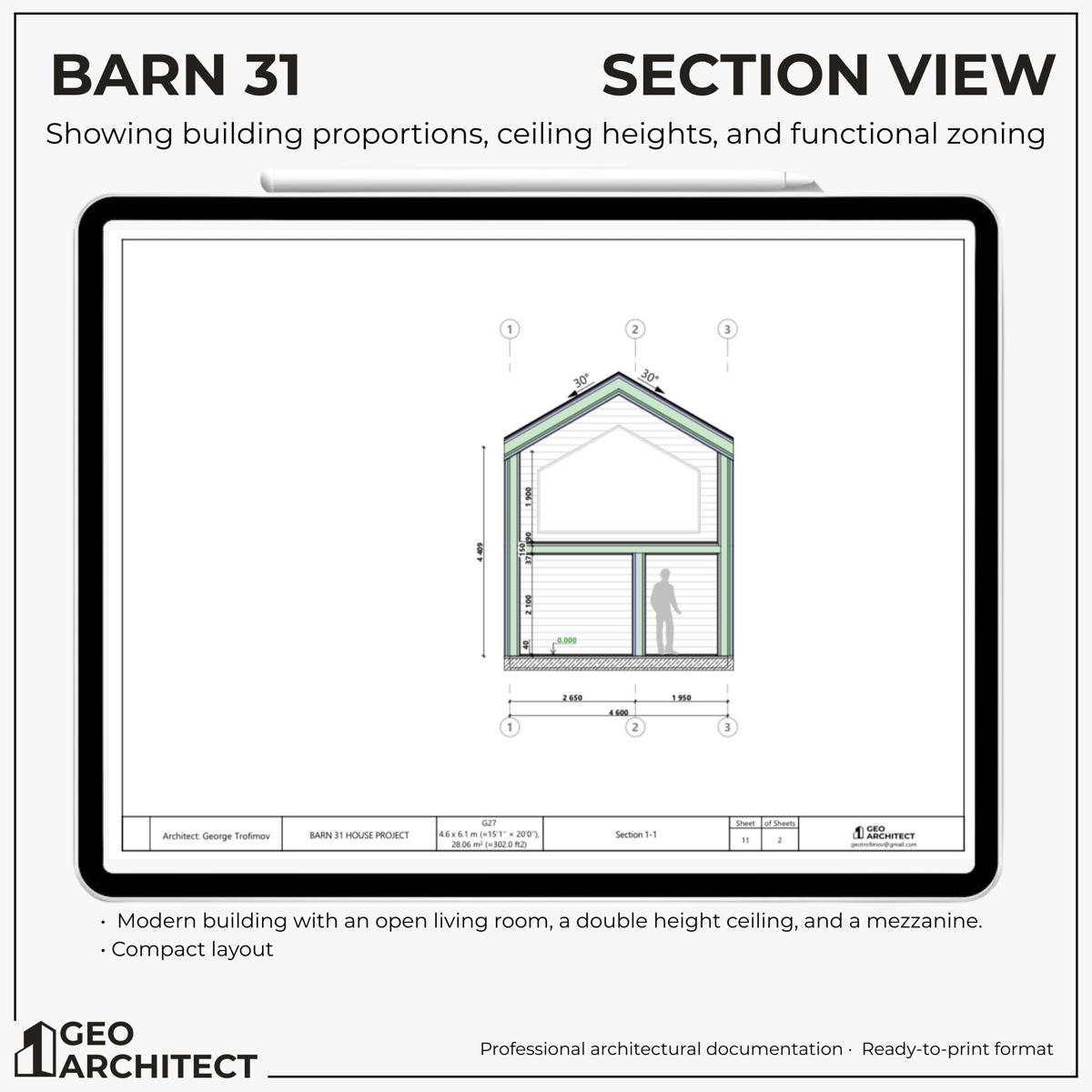

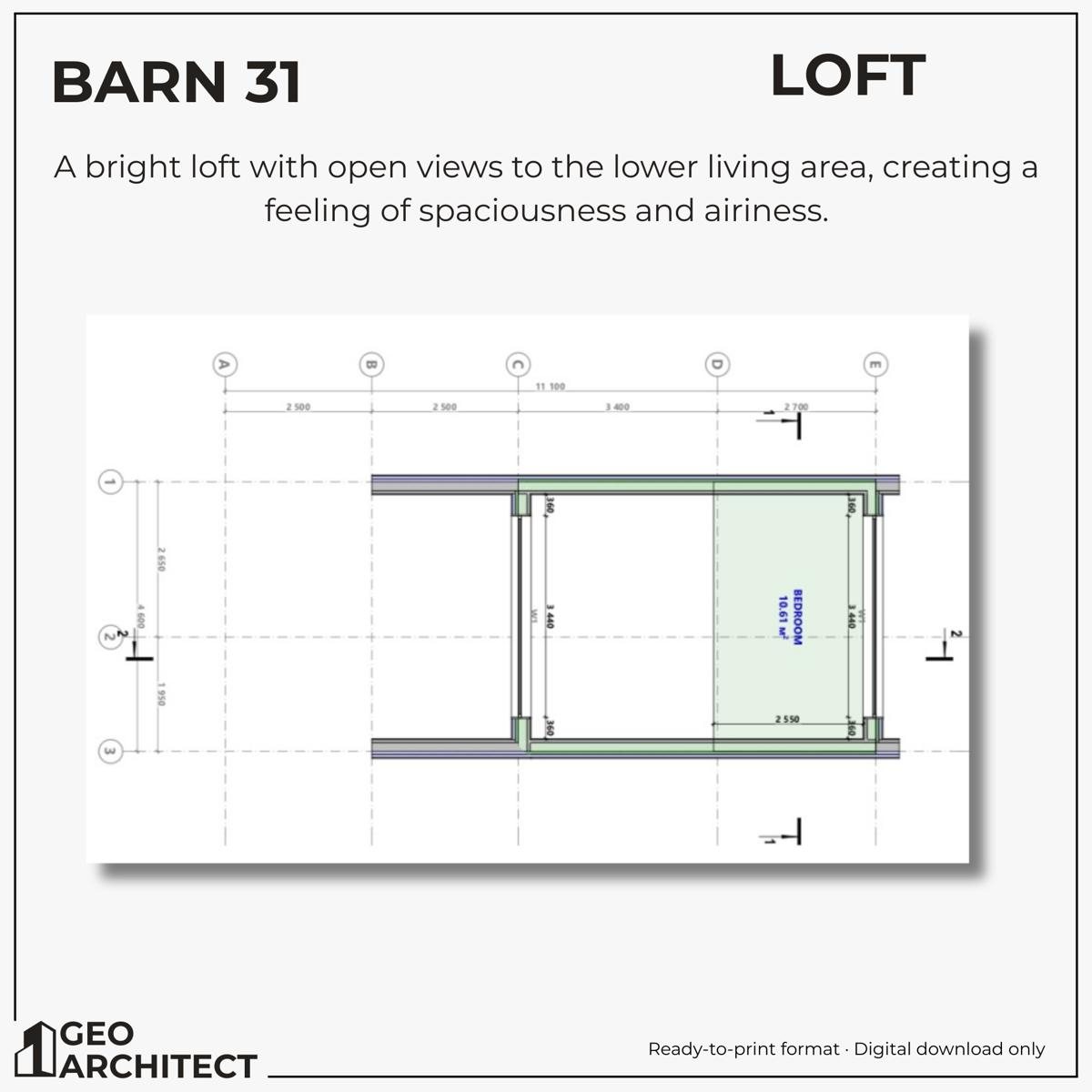

Plans, sections and details

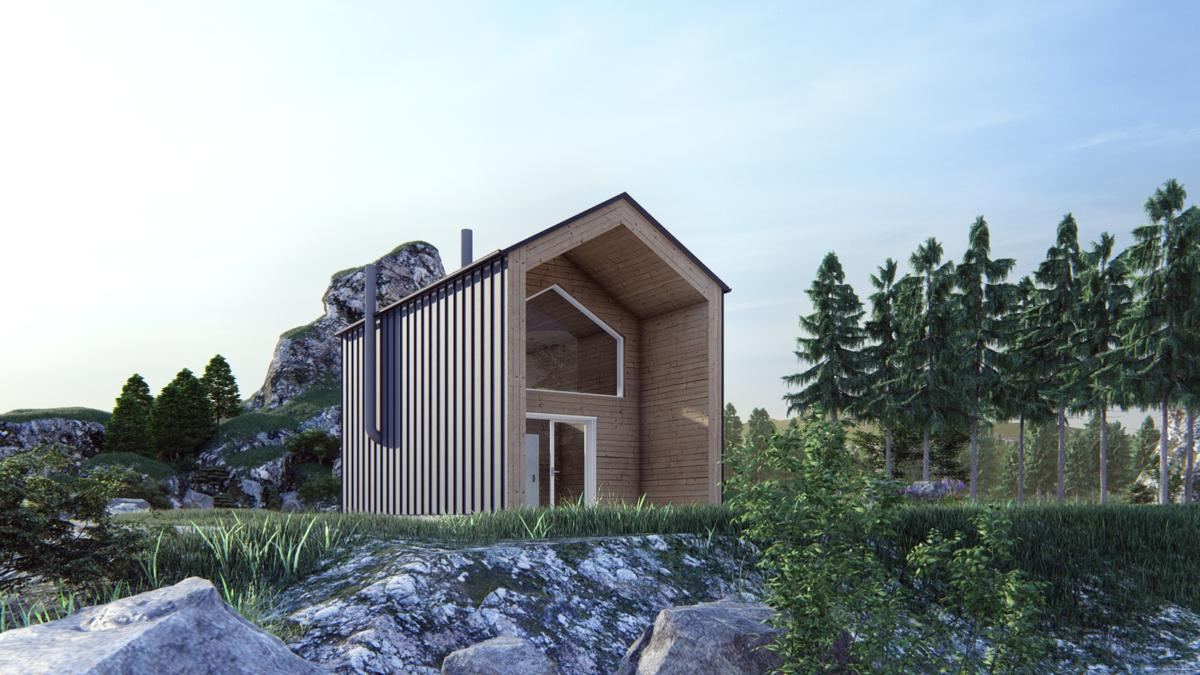

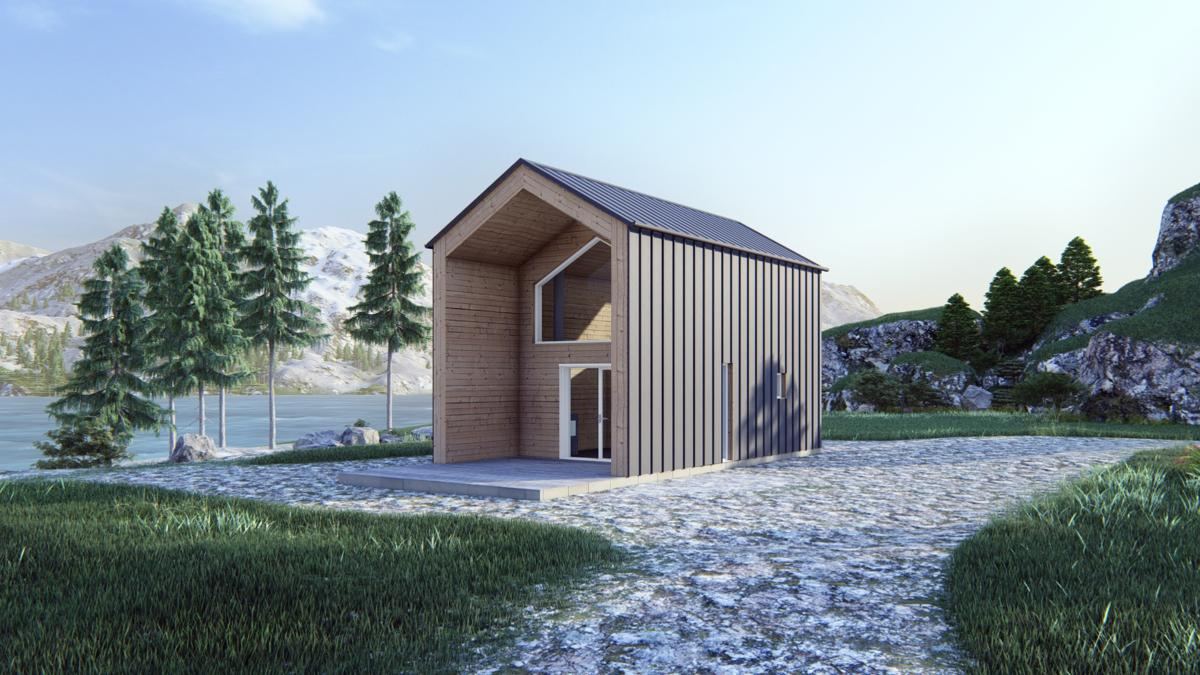

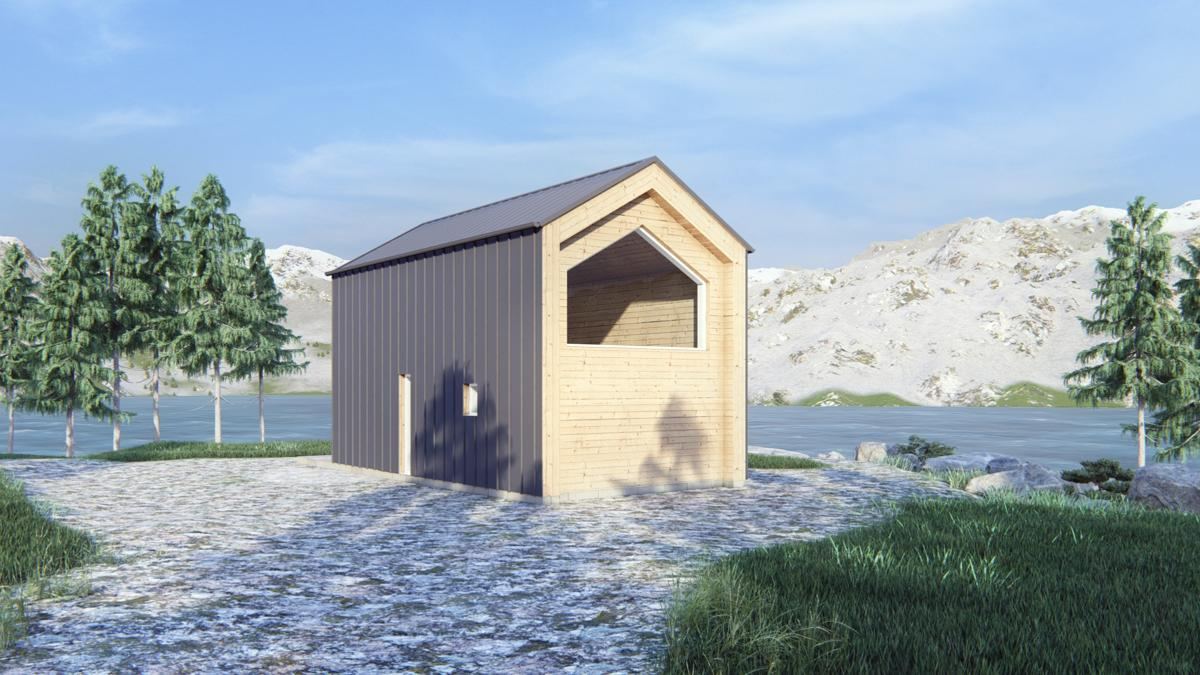

More views
What you get

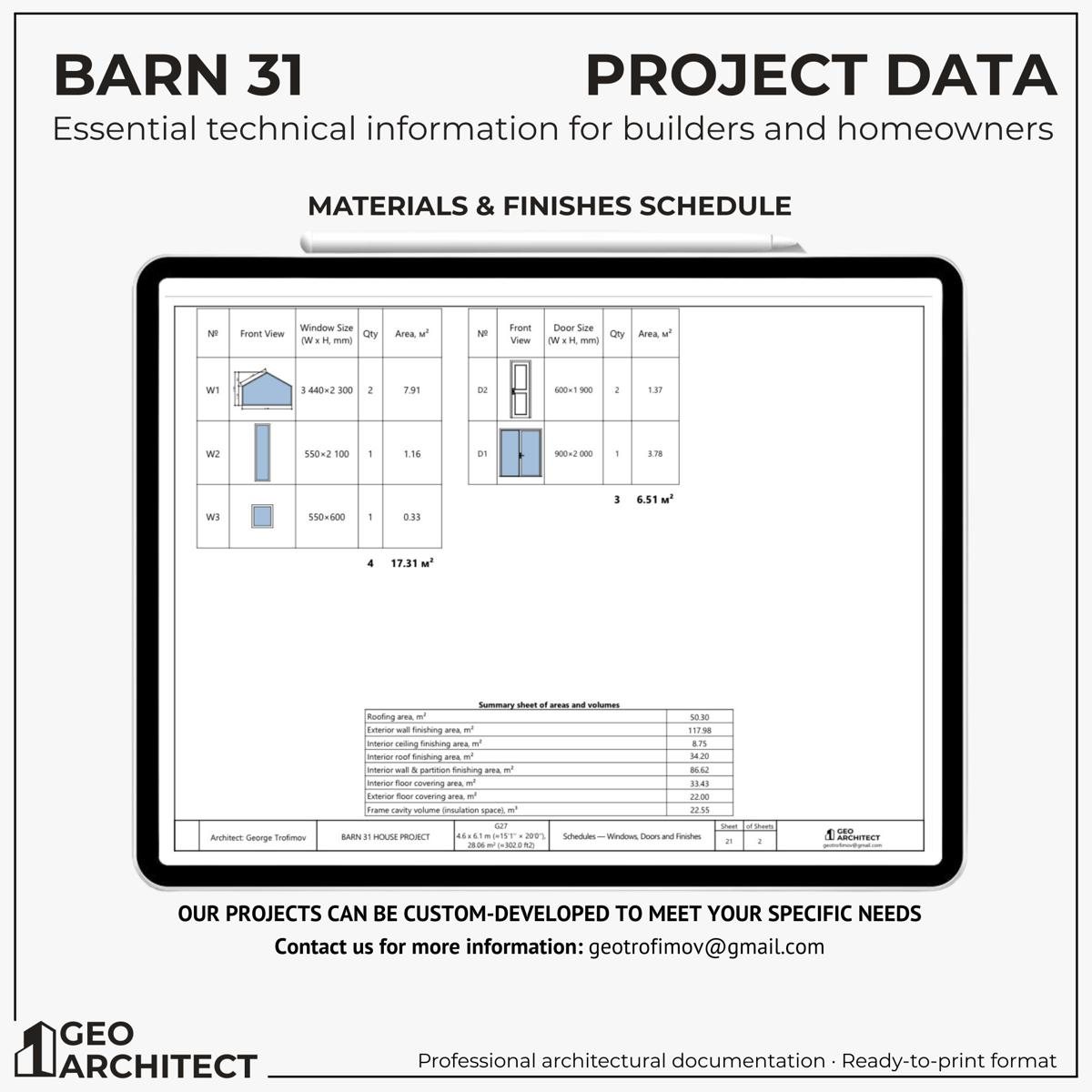

- Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
- Metric drawings; imperial (feet and inches) on request

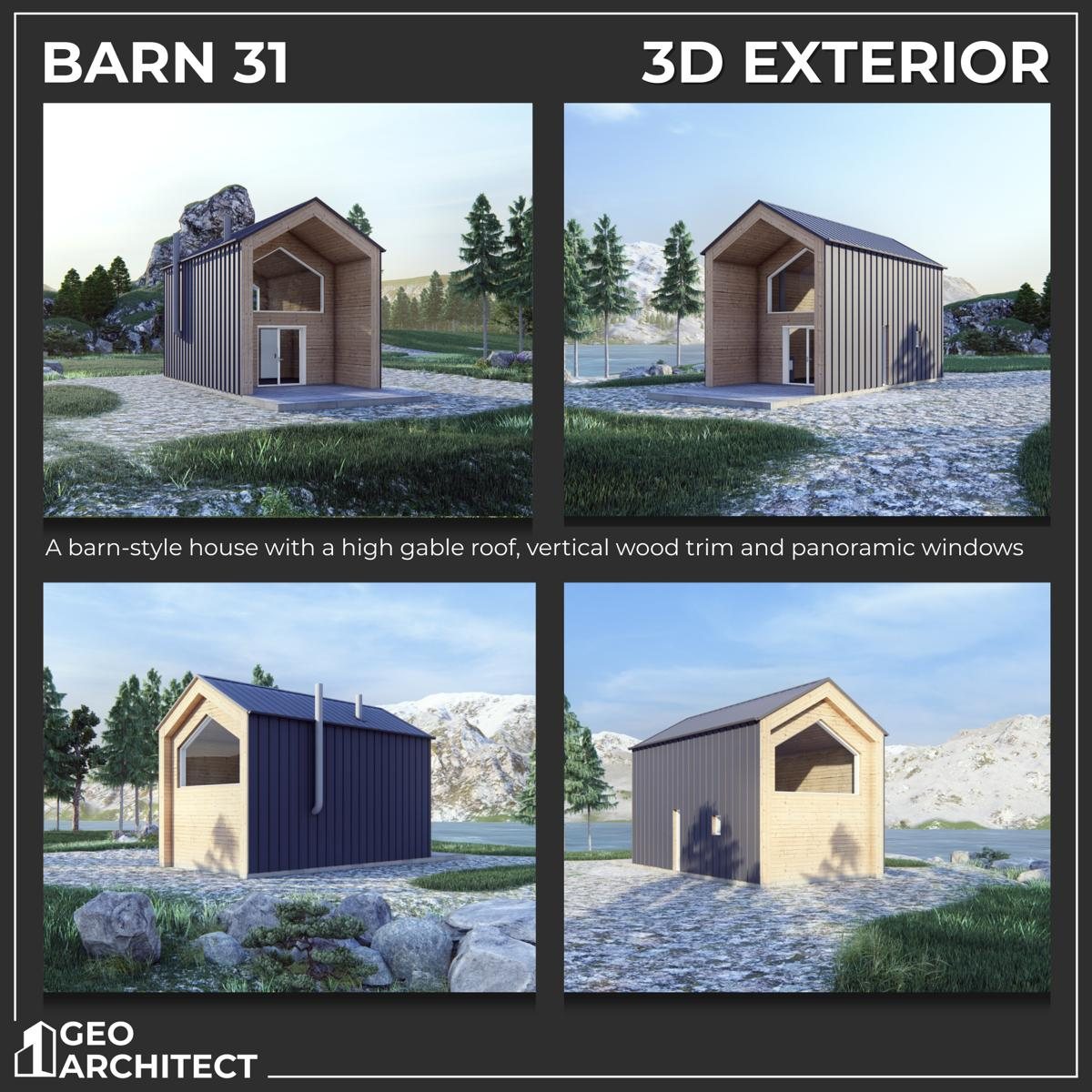

- Renders for presentation
- DWG and model files with the builder licence
This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
