House plans / Fachwerk 175
Fachwerk
Fachwerk 175

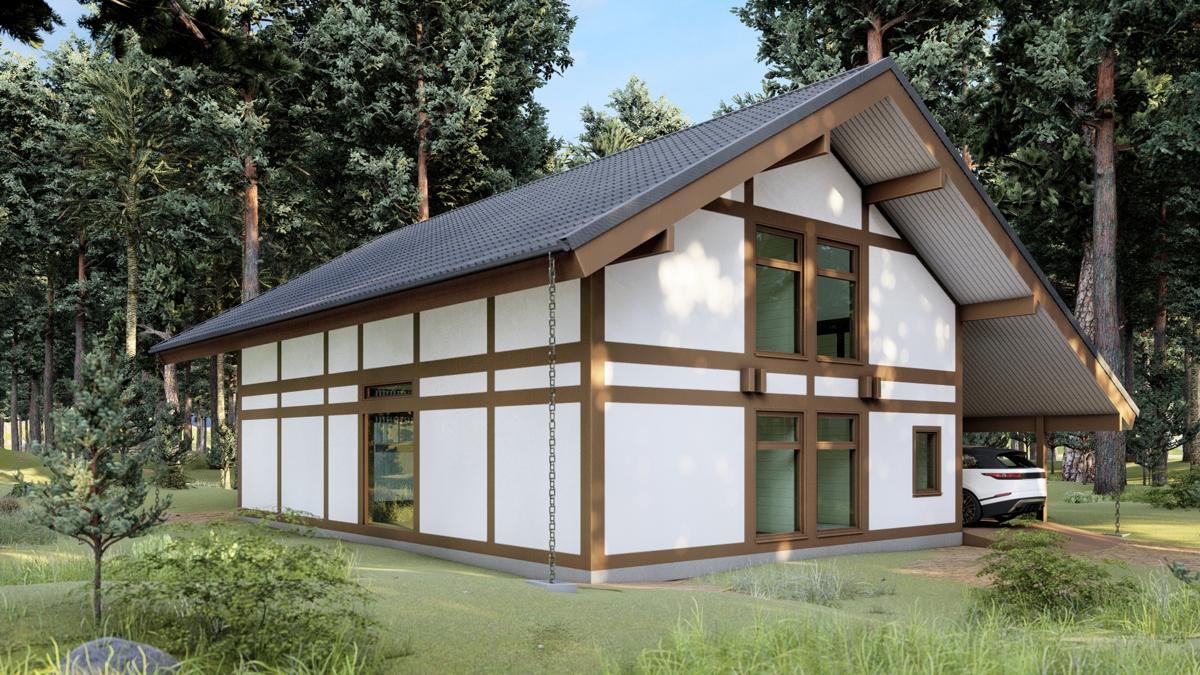

Fachwerk-style house
| Heated area | 175 m² (1880 sq ft) |
| Bedrooms | 3 |
| Design set | 22 sheets · 15 renders |
| Units | Metric + imperial (ft-in) |
| Plan code | G46 |
| PDF design set | $279 |
| PDF + DWG/model files | $419 |
| Builder licence | from $149 · details |

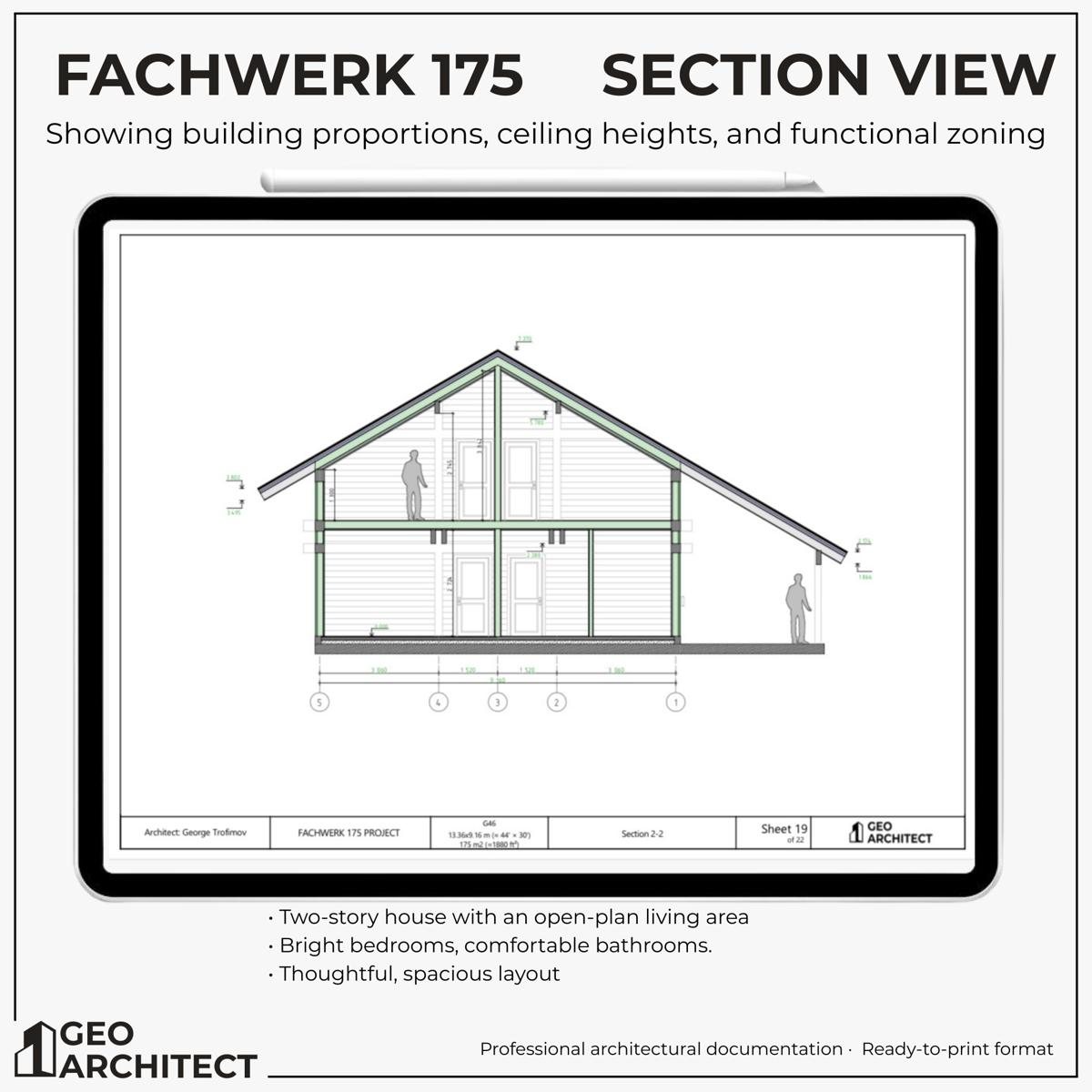

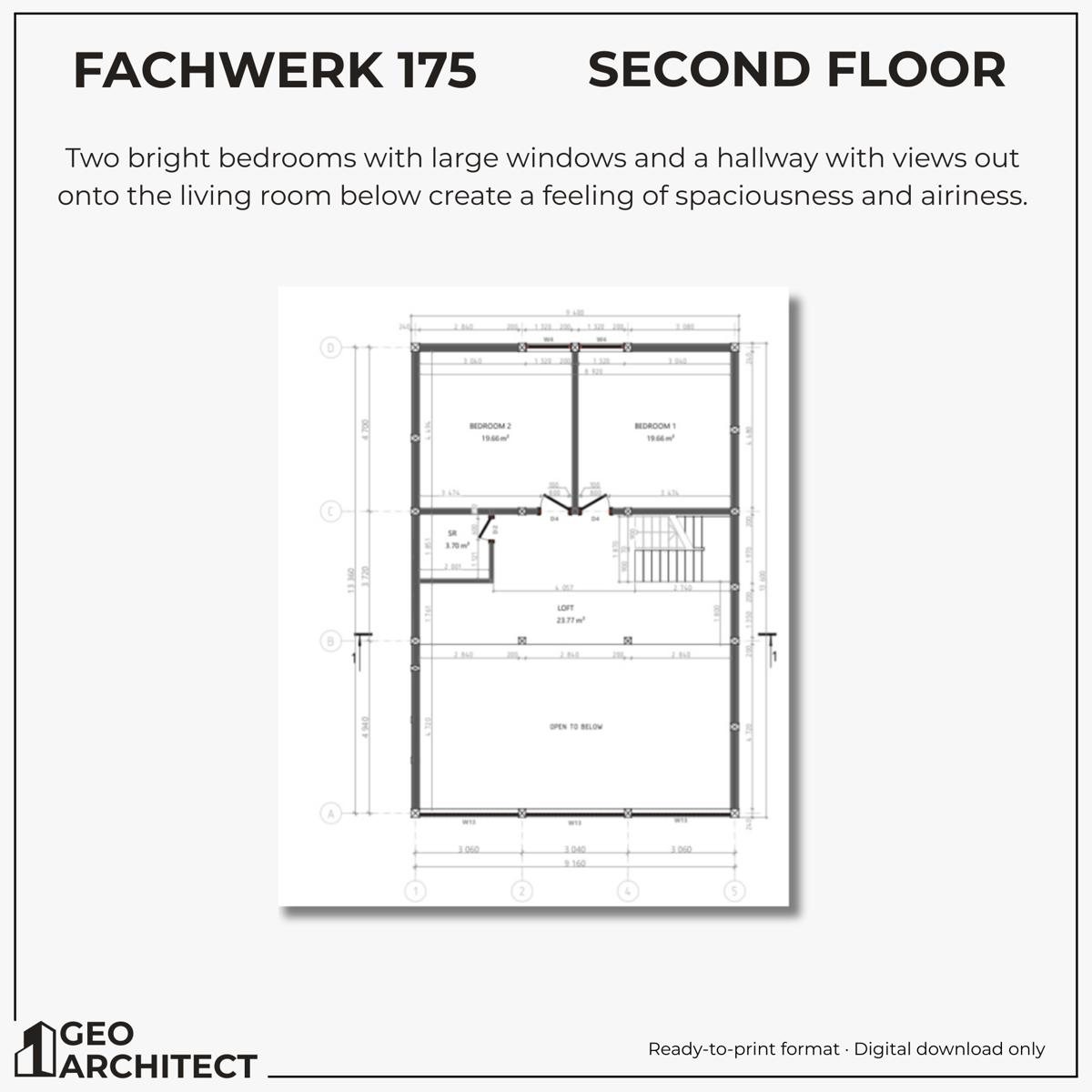

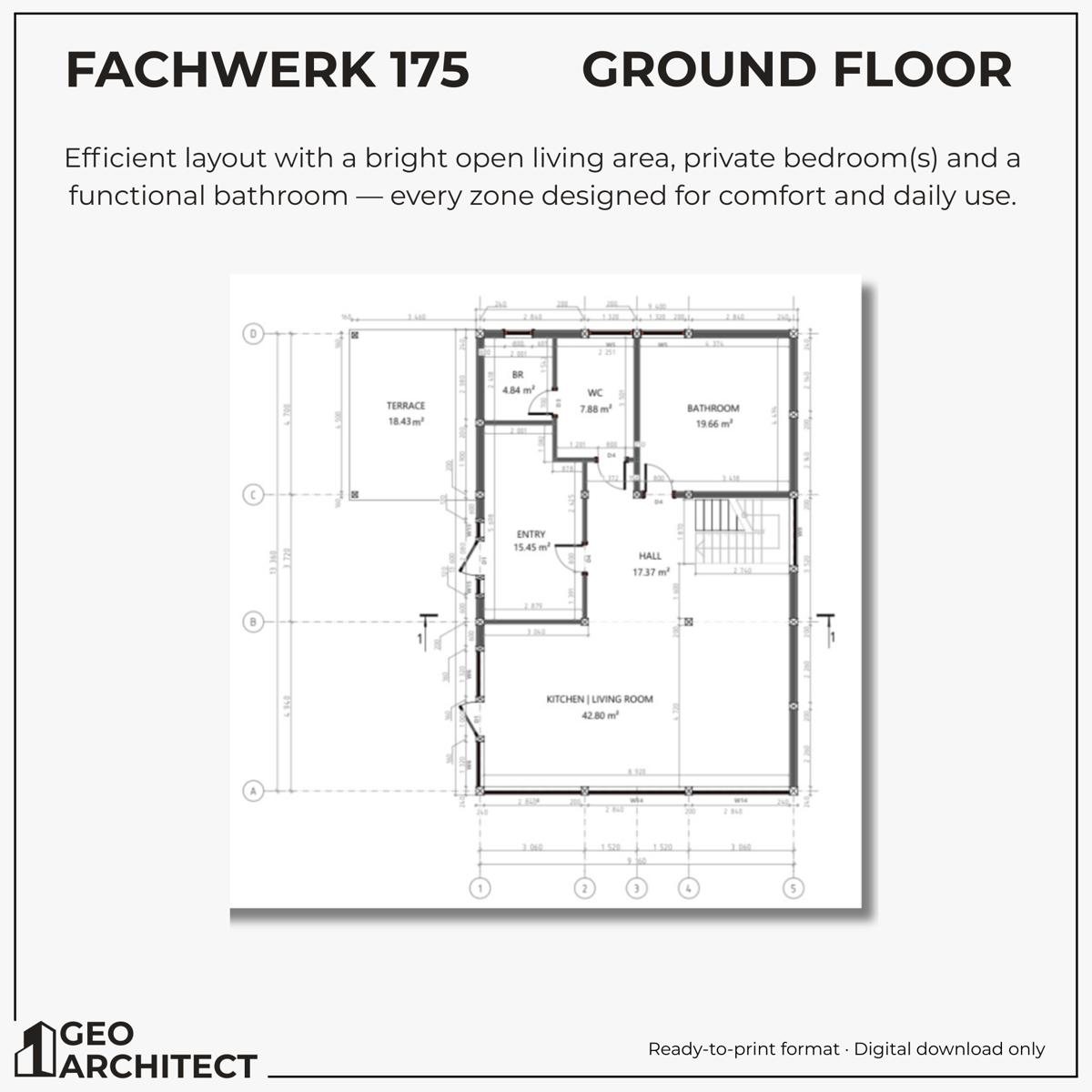

Plans, sections and details
More views
What you get

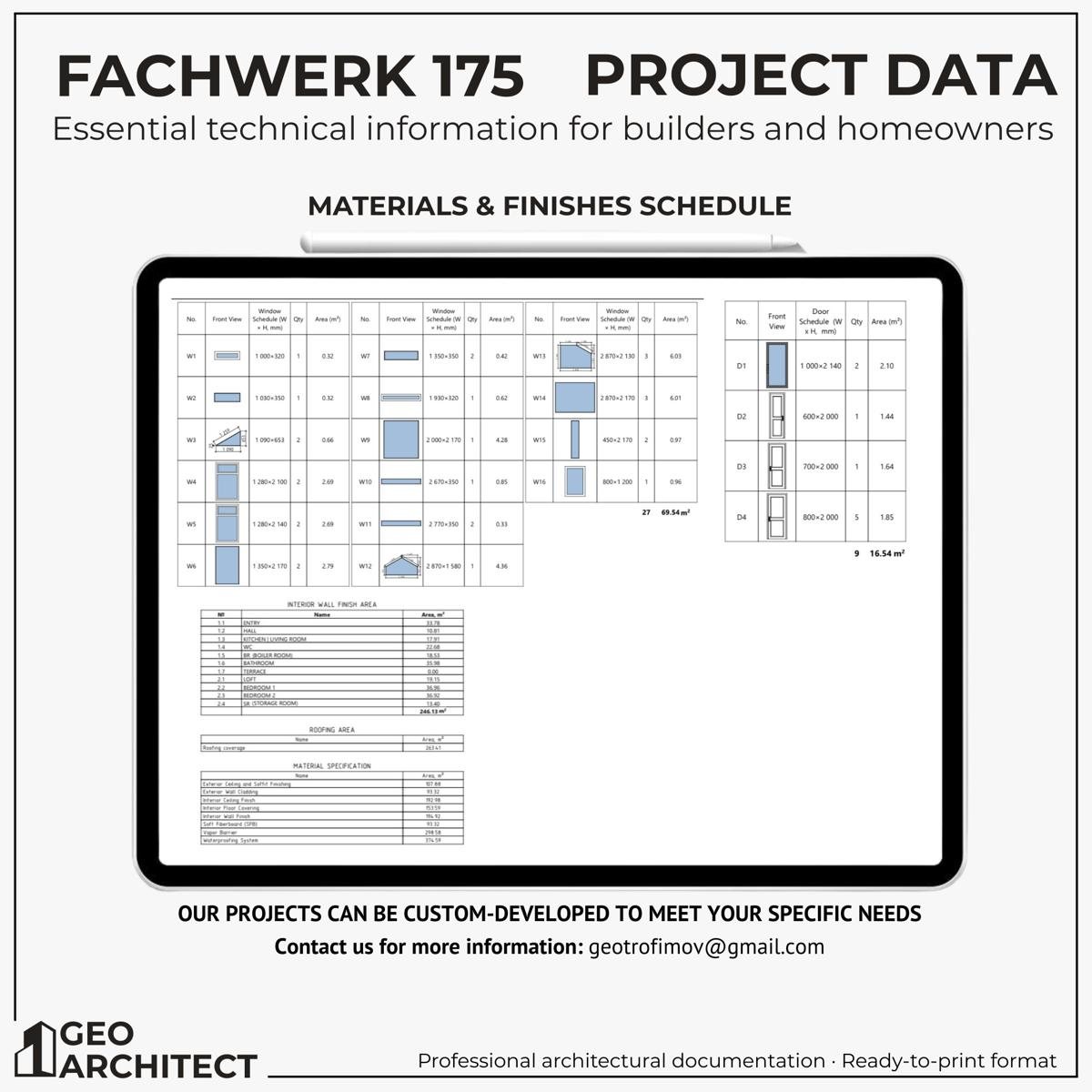

- Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
- Metric drawings; imperial (feet and inches) on request
- Renders for presentation
- DWG and model files with the builder licence
This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
