George TrofimovResidential Designer
House plans / Fachwerk 180
Fachwerk 180 render
Fachwerk

Fachwerk 180

Fachwerk-style house

Heated area180 m² (1940 sq ft)
Bedrooms4
Design set22 sheets · 16 renders
UnitsMetric + imperial (ft-in)
Plan codeG47
PDF design set$289
PDF + DWG/model files$429
Builder licencefrom $149 · details
Buy or ask about this planLicense for builders

Plans, sections and details

Tap a sheet to enlarge it.

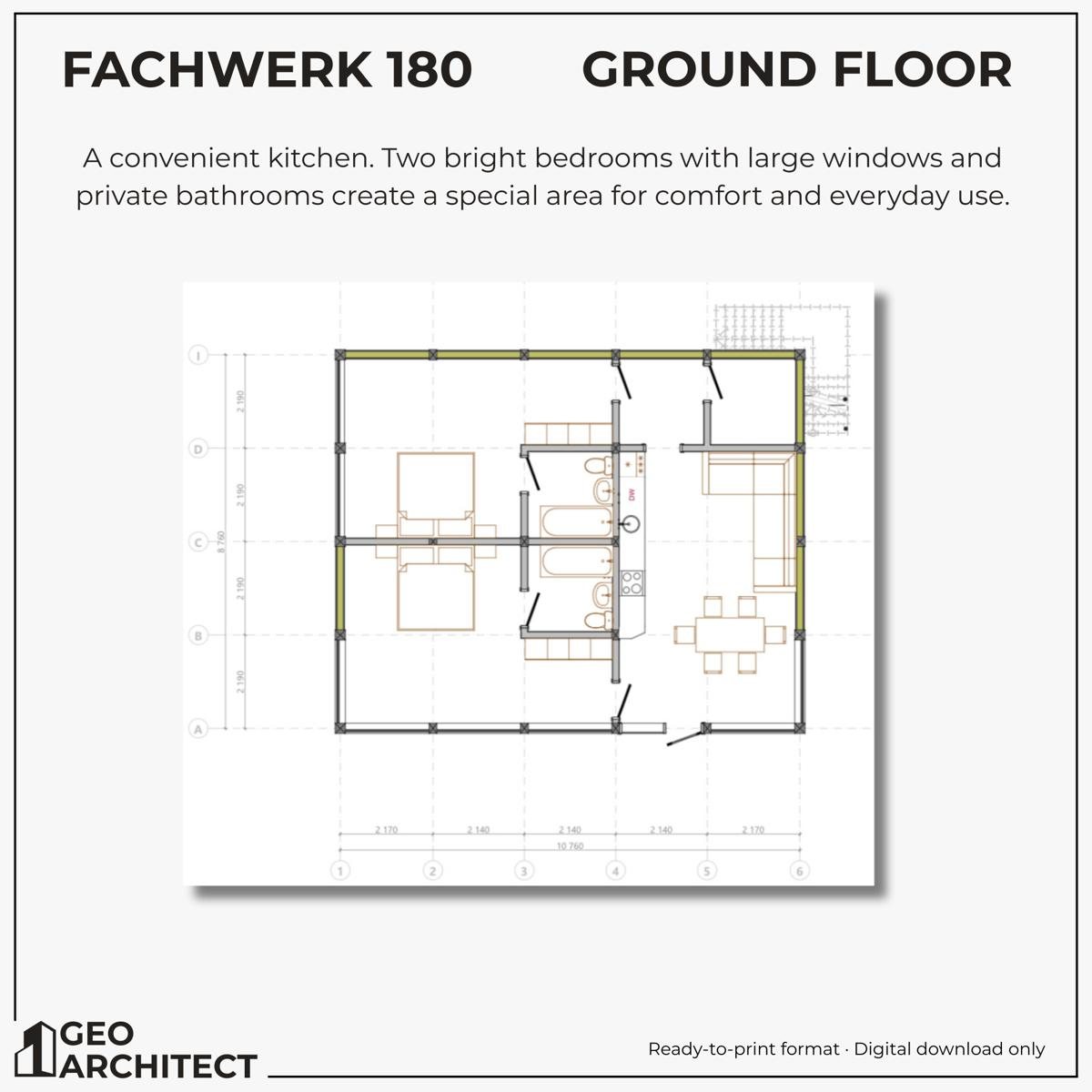

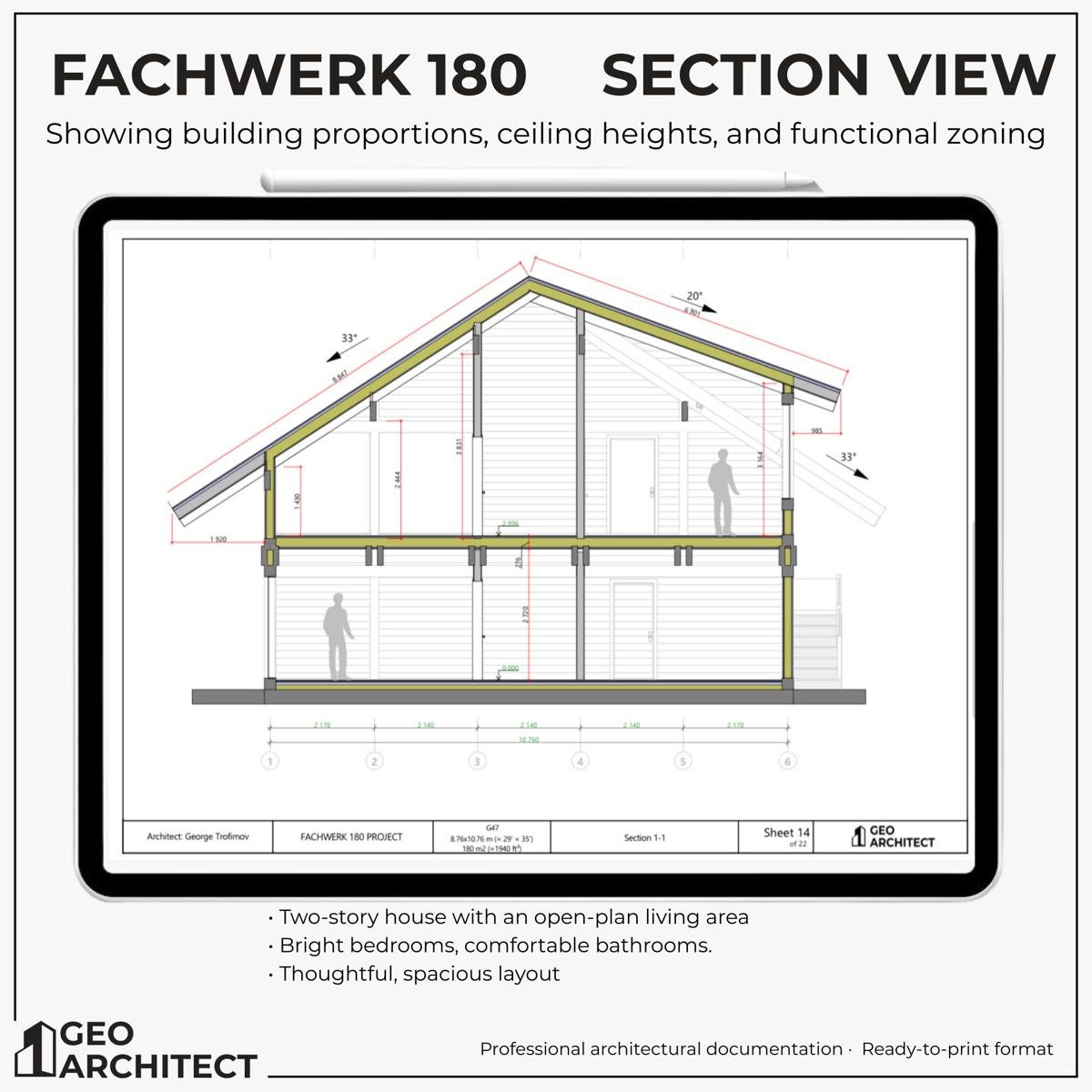

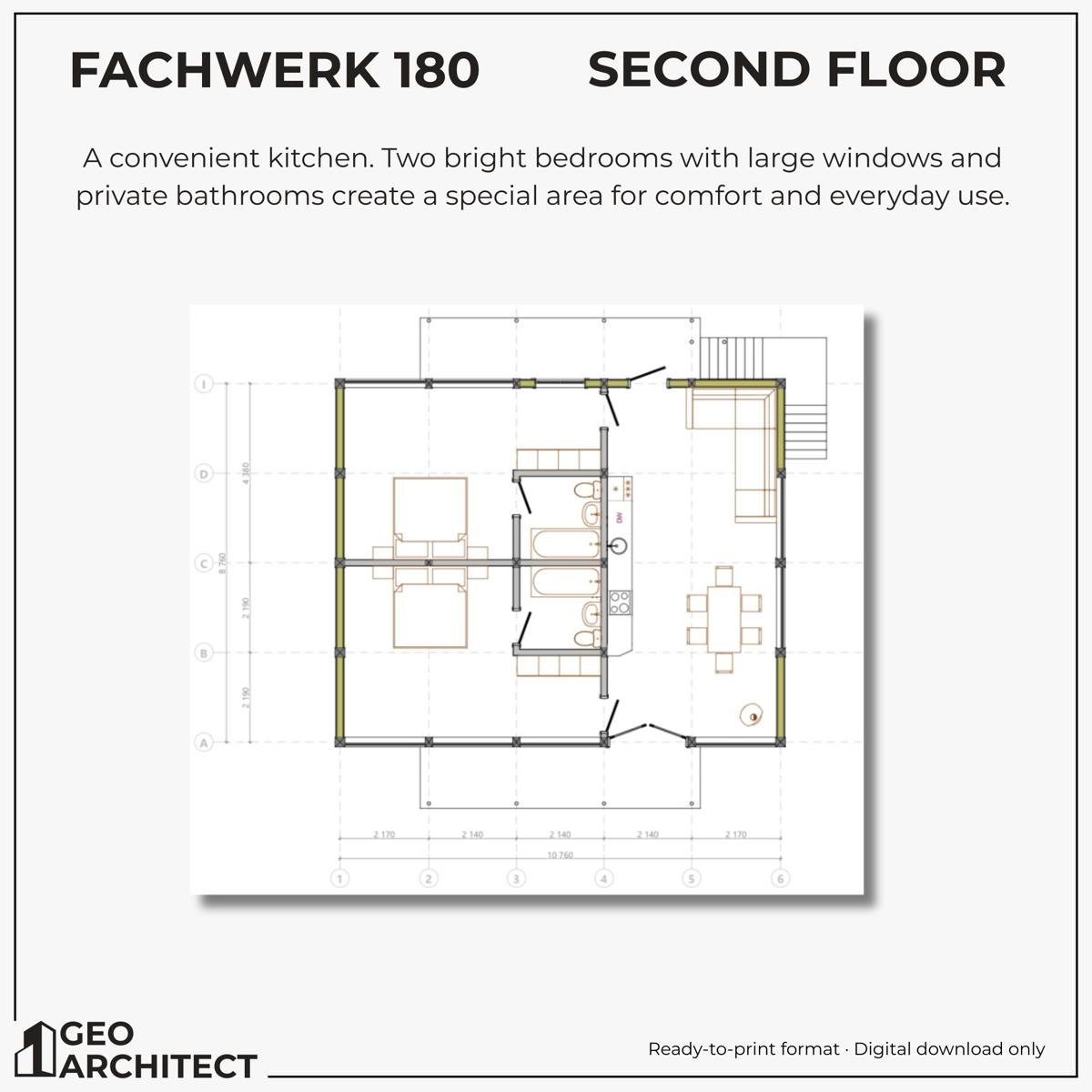

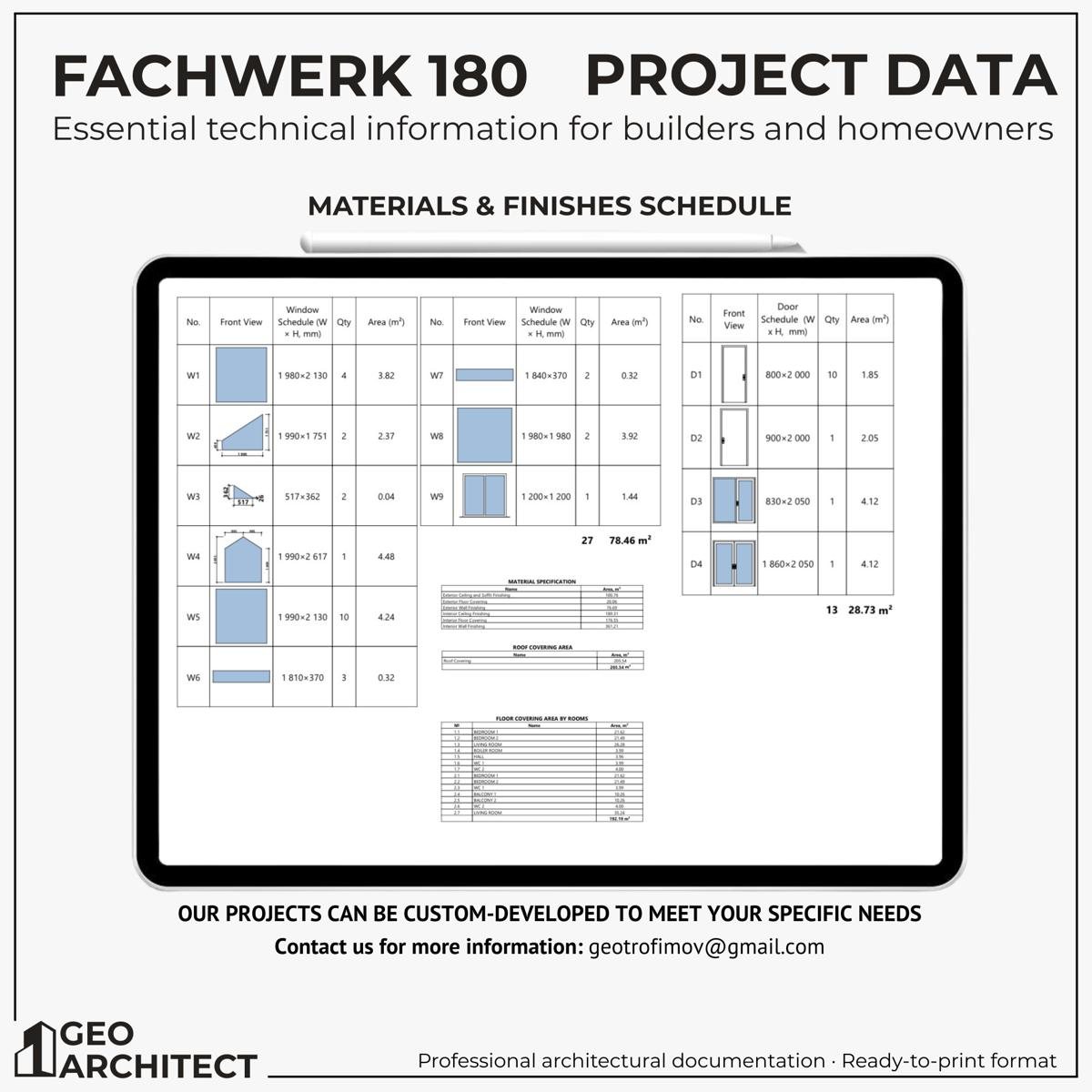

Fachwerk 180 drawing sheet 1Fachwerk 180 drawing sheet 2Fachwerk 180 drawing sheet 3Fachwerk 180 drawing sheet 4Fachwerk 180 drawing sheet 5Fachwerk 180 drawing sheet 6Fachwerk 180 drawing sheet 7

More views

Fachwerk 180 render 1Fachwerk 180 render 2Fachwerk 180 render 3

What you get

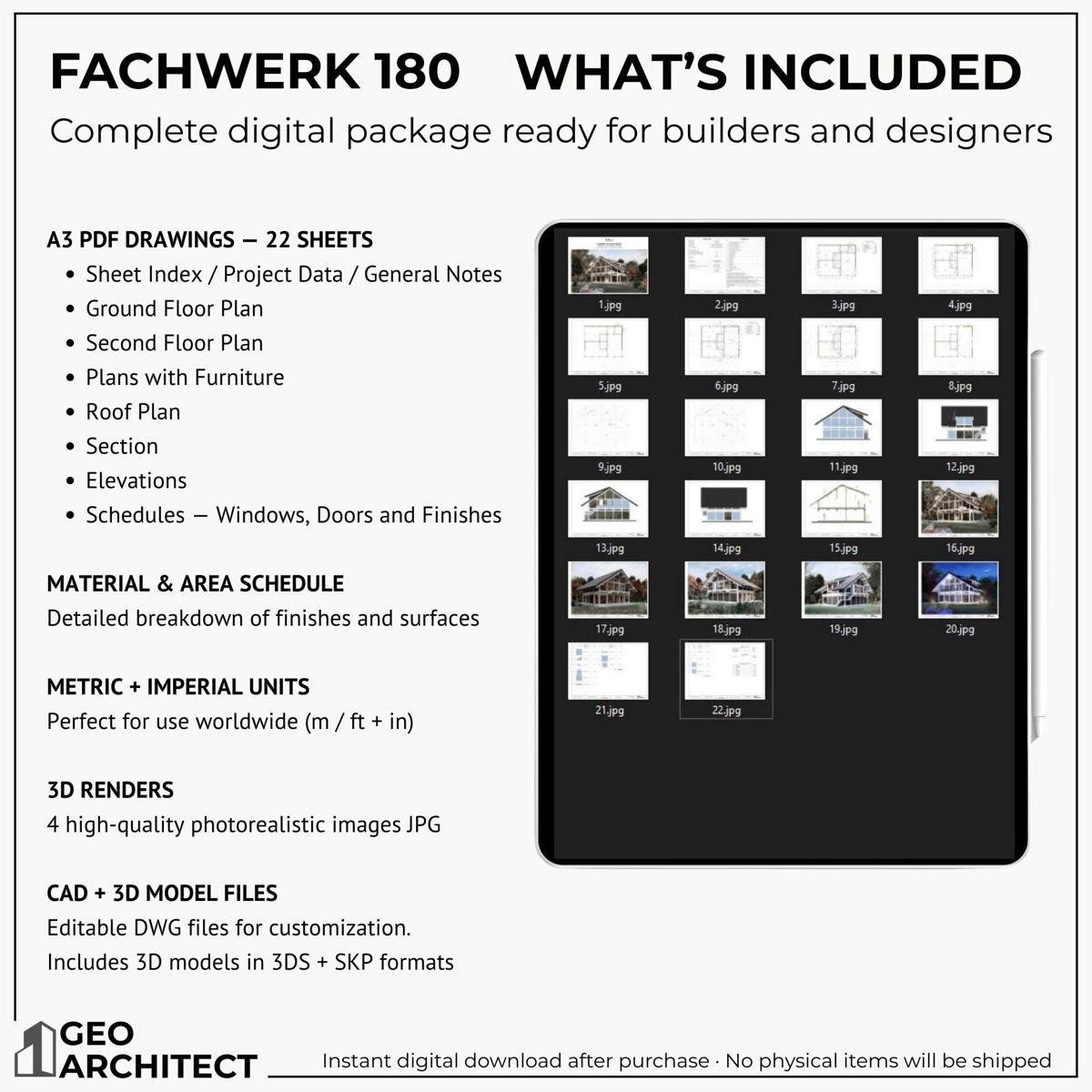

  • Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
  • Metric drawings; imperial (feet and inches) on request
  • Renders for presentation
  • DWG and model files with the builder licence

This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
