Fachwerk 200
Fachwerk-style house
| Heated area | 200 m² (2152 sq ft) |
| Design set | 20 sheets · 18 renders |
| Units | Metric; imperial on request |
| Plan code | G45 |
| PDF design set | $319 |
| PDF + DWG/model files | $479 |
| Builder licence | from $149 · details |
Photos of a real house built from this plan are below.

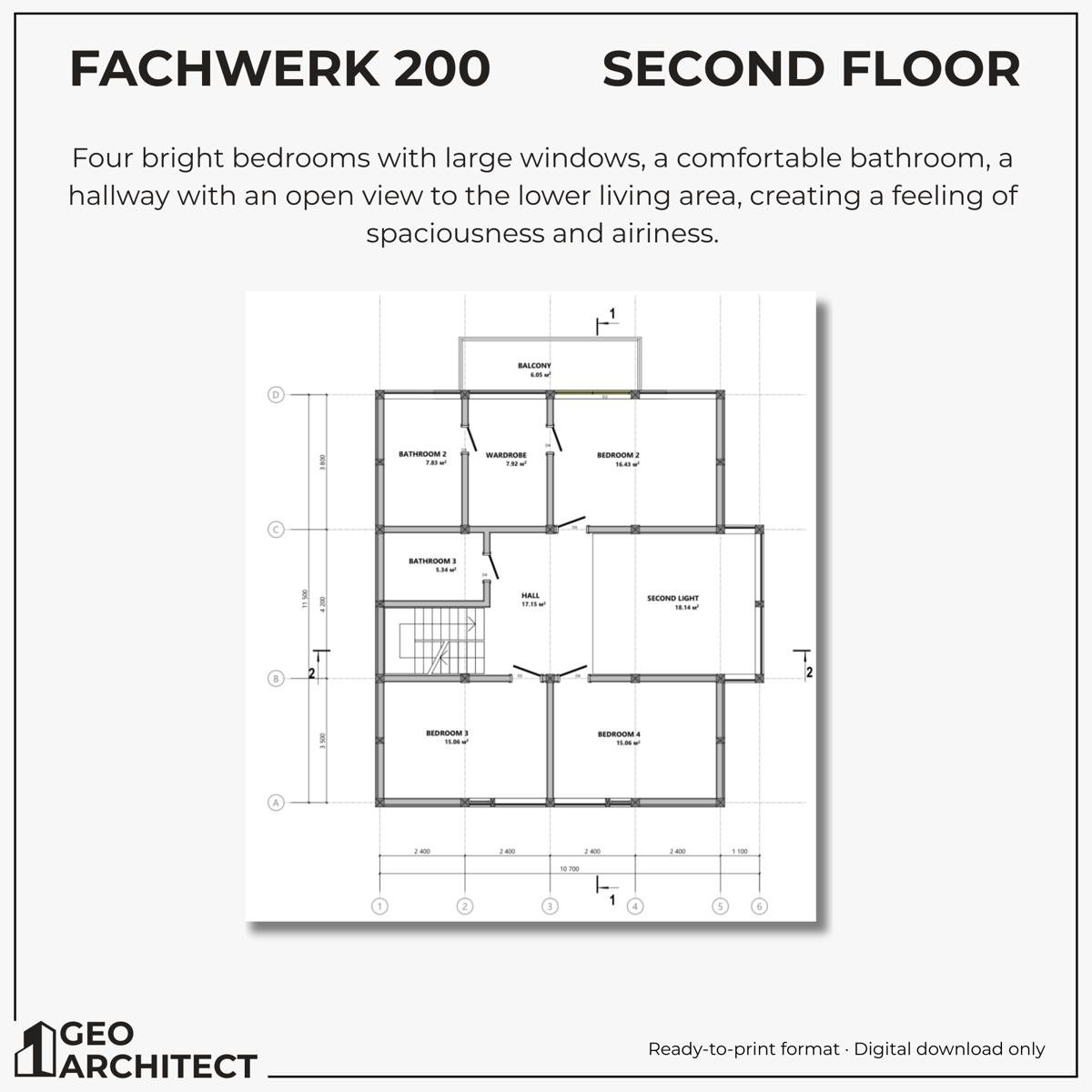

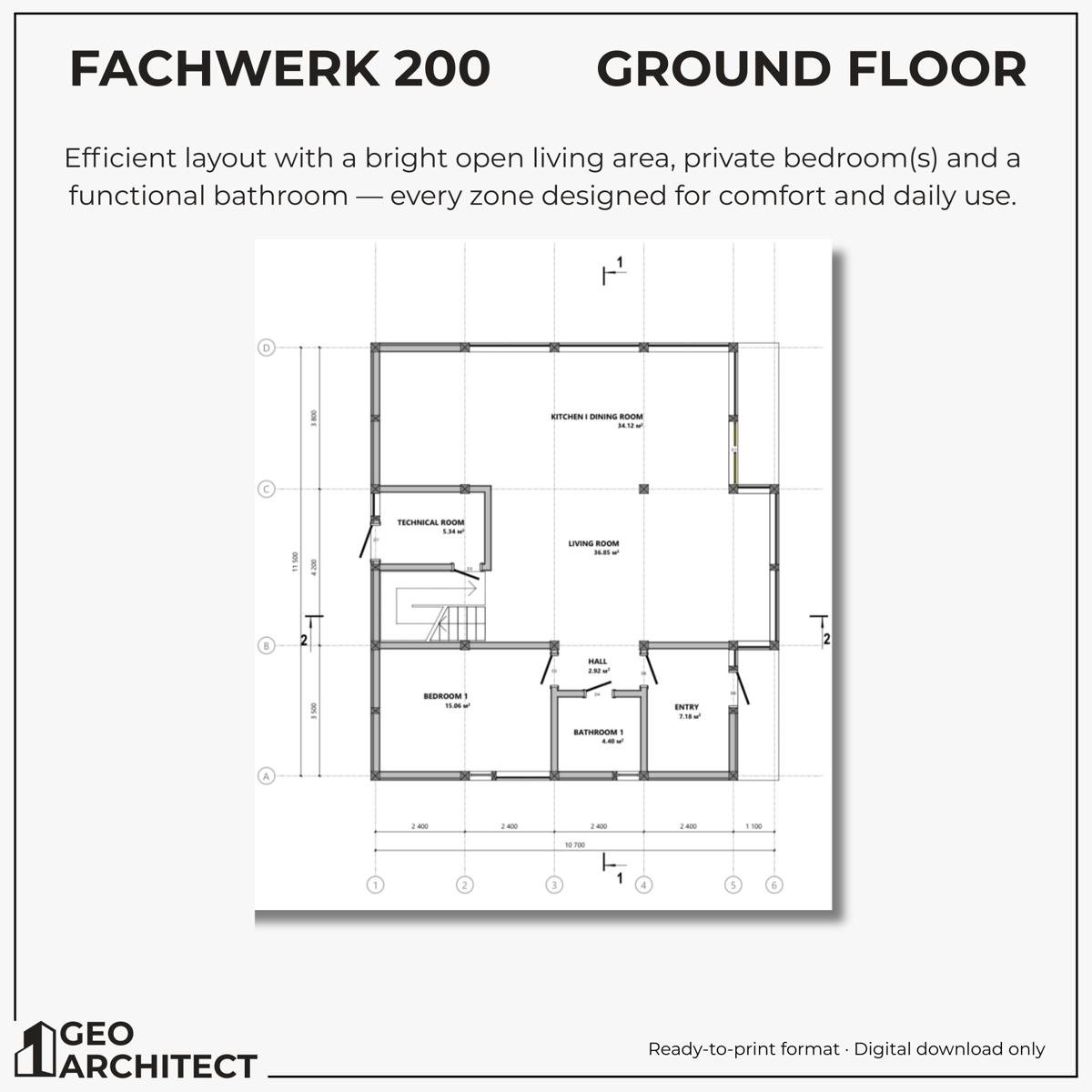

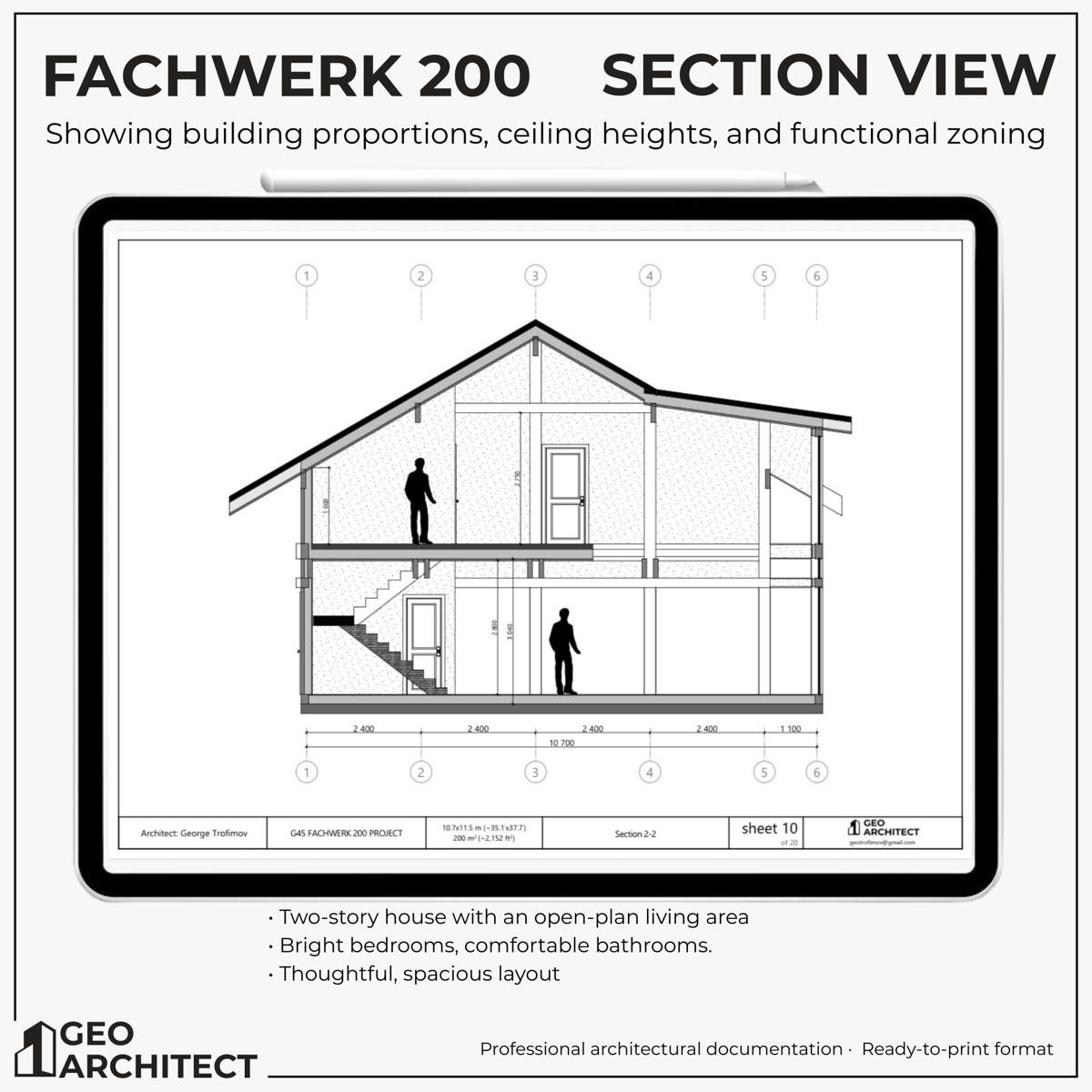

Plans, sections and details
More views
Built from this plan
What you get

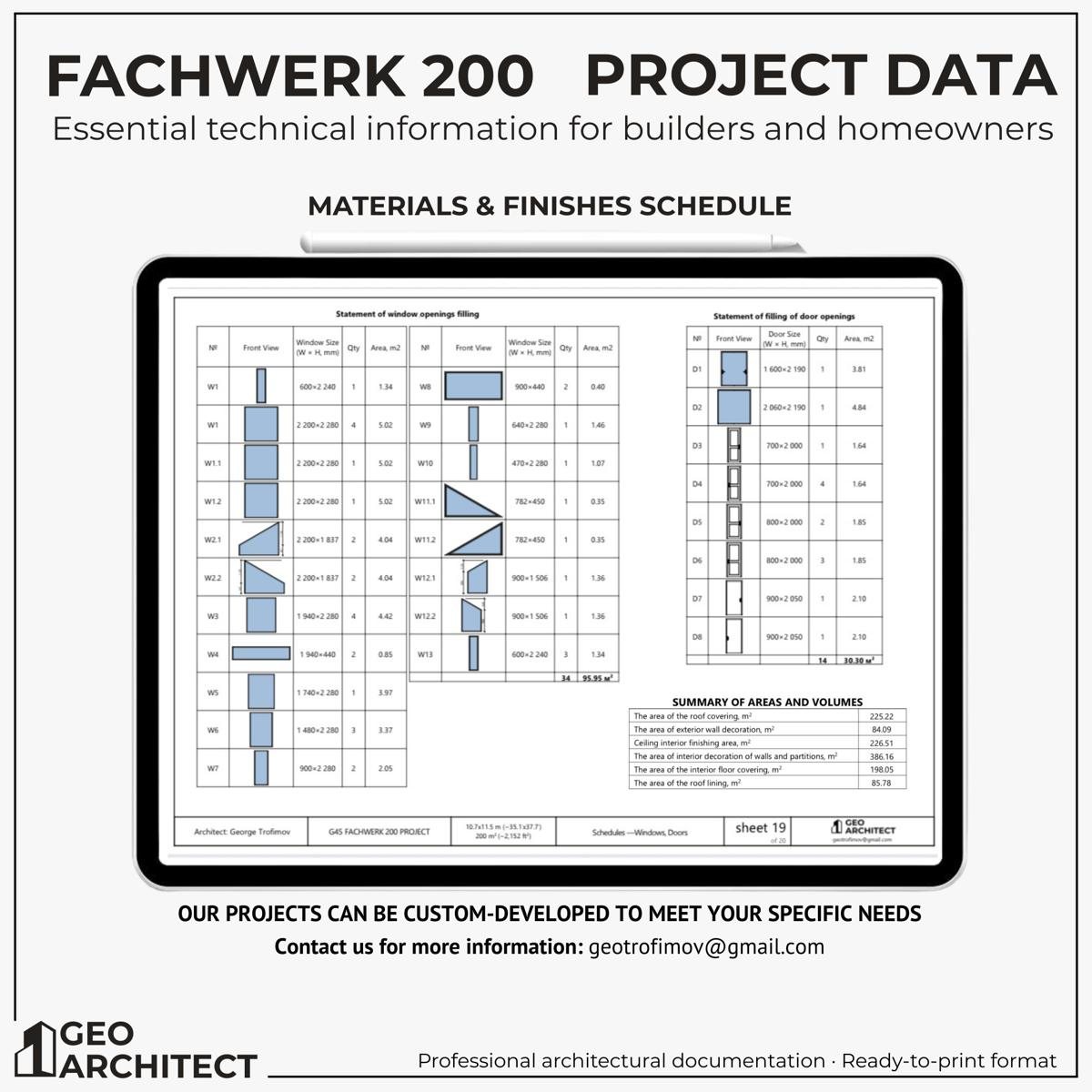

- Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
- Metric drawings; imperial (feet and inches) on request
- Renders for presentation
- DWG and model files with the builder licence
This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
